LRC-DR-2 Digital Reverb Board

Digital Reverb Board using the Belton BTDR-3H Reverb Brick - 2.500" x 1.800"

LRC-DR-2 Utilizes the Belton BTDR3-H reverb brick to bring rich reverb to your builds without those annoying thunder strikes that occur when you stumble into your amp. It can be spliced into your amplifier’s circuitry in the same manner as the Fender Blackface Reverb amps. This board features components on both sides of the board to keep its footprint to a minimum.

It offers trim-pots for:

  • INPUT LEVEL: use this control to match the signal input to the reverb circuit to your chosen "pick-off" point in your amplifier circuit.
  • BLEND: since the BTDR3 has stereo outputs, this control mixes the balance between them into one mono output. NOTE: this is a very subtle control.
  • TONE: controls the tone of the reverb signal. The trim-pot can be replaced by a panel-mounted pot.
  • DECAY TIME 1 & DECAY TIME 2: these two trim pots allow for control of the reverb decay time from the LEFT and RIGHT outputs. The trim-pots can be replaced by a panel-mounted dual-gang pot.

POWER REQUIREMENTS
This board requires +/-15V @ 40mA and +5V @ 100mA. If you do not have these voltages available, we offer the LRC-PS-2 Triple Output Power Supply Board. Please note the LRC-PS-2 requires an unused 5VAC winding from your Power Transformer. If you are using your 5V winding to power the filament of a rectifier tube, you will damage the LRC-PS-2 and the LRC-DR-2 boards.

Price is $15.95 plus shipping to the Continental US.

PLEASE NOTE: If you are located outside the US please contact us before you place your order so we can give you the cost to ship to your location.

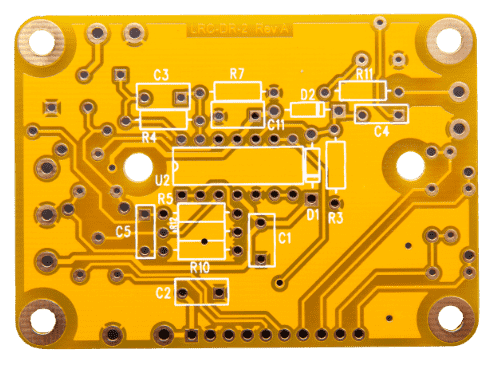

LRC-DR-2 front LRC-DR-2 back
